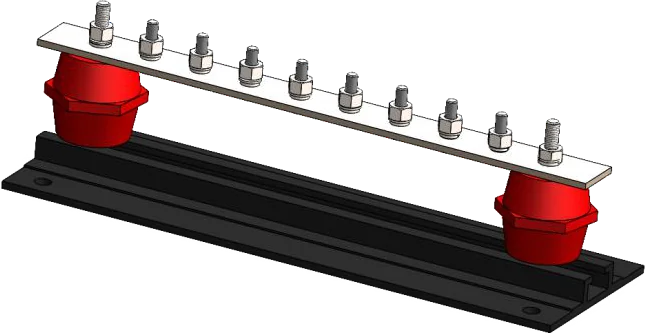

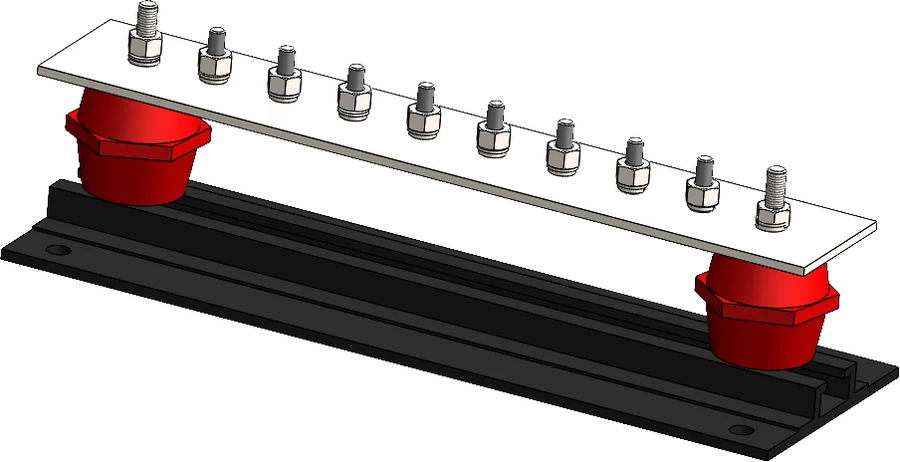

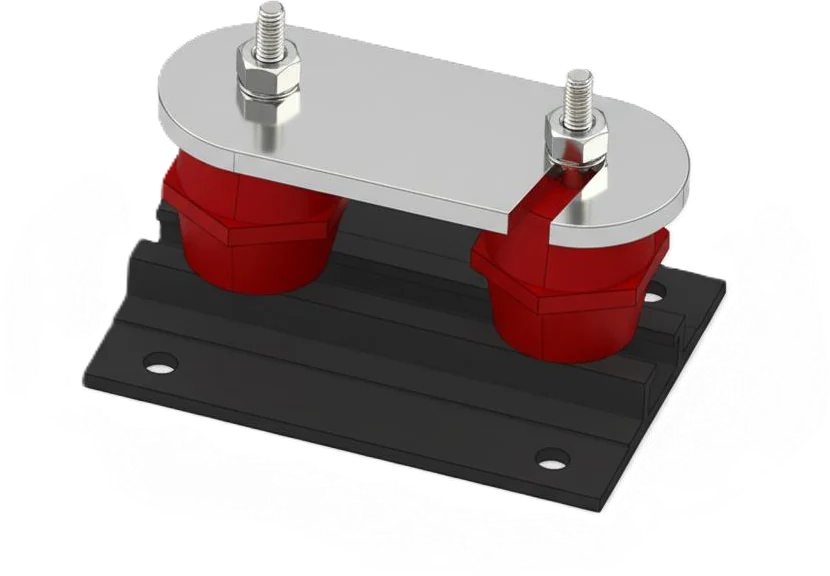

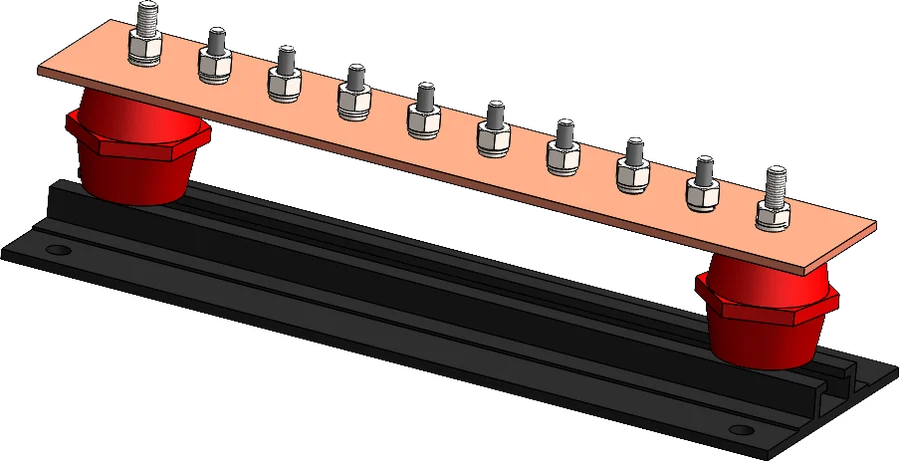

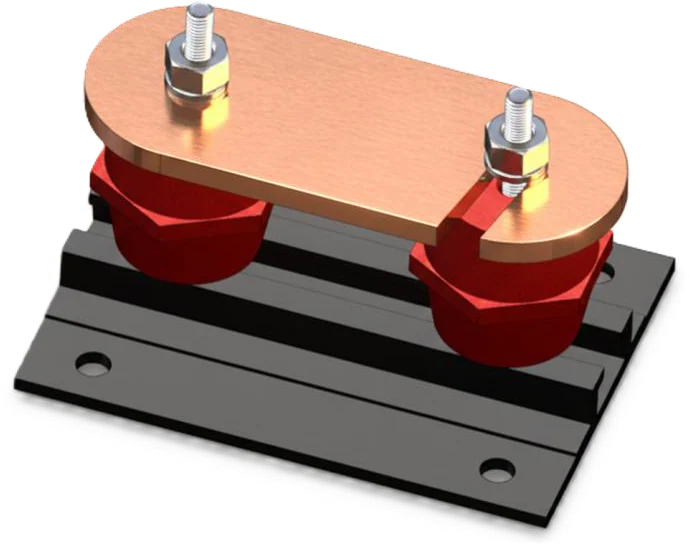

Earth Bus Bar (Copper & Tinned Copper)
An earth bus bar is a conductive strip or bar, typically made of copper or aluminum, used to collect and distribute grounding connections in electrical systems. It ensures safe dissipation of fault currents to the ground, improving system reliability and safety
- Sizes can be customised
Supplied for export by Quantum Indus Exports. Specification confirmed per order.
13 options below — use Enquire beside the size you need.
Specification & sizes
| Material | Copper & Tinned Copper |
|---|---|
| Grade | High Conductivity Electrolytic (ETP) & Commercial Grade |
| Ways | Length | Enquire |
|---|---|---|
| 6 | 400 mm | |
| 8 | 500 mm | |
| 10 | 650 mm | |
| 12 | 750 mm | |
| 14 | 850 mm | |
| 16 | 950 mm | |
| 18 | 1050 mm | |
| 20 | 1200 mm | |
| 22 | 1300 mm | |
| 24 | 1400 mm | |
| 26 | 1500 mm | |
| 28 | 1650 mm | |
| 30 | 1750 mm |
