Clamps, Connectors & Holders
Test Link
The test link is mainly used to offer a temporary break in the connection to earth allowing the testing of an earth rod whilst disconnecting from the lightning protection system.
- IS-IEC 62305 / 62561
Supplied for export by Quantum Indus Exports. Specification confirmed per order.
8 options below — use Enquire beside the size you need.
Specification & sizes

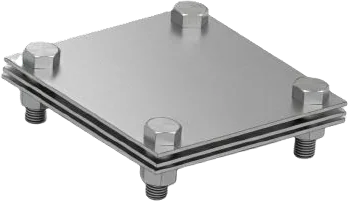

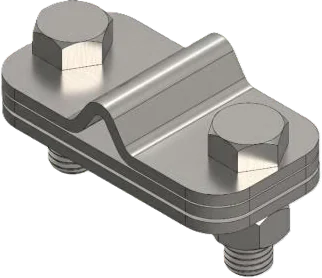

Test Link - Flat to Flat & Round to Round
| Material | Stainless Steel | |
|---|---|---|
| Grade | 304 | |
| Standard | IS-IEC 62305 / 62561 | |
| Impulse Current | 100 kA 10/350 µs | |
| Suitability for round to round | 8 mm | |
| 10 mm | ||
| Suitability for flat to flat | 25 mm | |
| 30 mm | ||
| Used for disconnecting and testing | ||

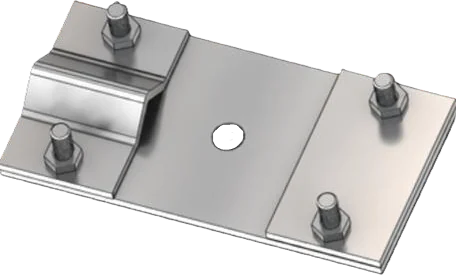

Test Link - Flat to Round
| Material | Stainless Steel | |
|---|---|---|
| Grade | 304 | |
| Standard | IS-IEC 62305 / 62561 | |
| Impulse Current | 100 kA 10/350 µs | |
| Suitability | 25-08 mm | |
| 25-10 mm | ||
| 30-08 mm | ||
| 30-10 mm | ||
| Used for disconnecting and testing | ||
